A/C blower motor stopped working Honda Pilot

Honda Pilot

My A/C blower motor stopped working

My A/C blower motor stopped working. I removed it and checked voltage at the plug, 12.4vdc. When I plug it back in, it starts momentarily, but stops. It’s a nonreturnable part based on its electrical nature, so I want to be sure this is the problem.

Use a different source of power when testing the blower motor. I use a Power Probe when doing this in the shop. It allows you to apply power at a push if a button. If you do not have one you can use jumper wires from the battery also. If you find your blower motor is functioning just fine with a separate power source, check your blower motor resistor next.

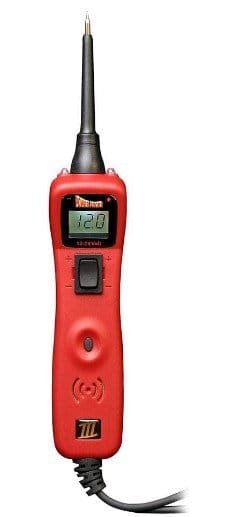

Power Probe III – Automotive Circuit Tester

Shop Automotive

Blower Motor Replacement

Blower Motor

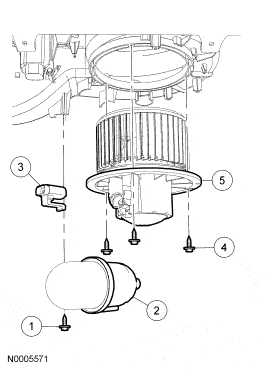

blower motor diagram 2004 Honda Pilot

Item Part Number Description
1 W701696 Vacuum reservoir screw
2 19A566 Vacuum reservoir
3 Blower motor electrical connector (part of 14401)
4 W701696 Blower motor screw (3 required)
5 19805 Blower motor

Removal and Installation

  1. Remove the vacuum reservoir screw.
  1. Position the vacuum reservoir aside.
  1. Disconnect the blower motor electrical connector.
  1. Remove the 3 blower motor screws.
  1. Remove the blower motor.
  1. Remove the blower motor wheel from the blower motor.
    1. Remove the push clip.
    1. Remove the blower motor wheel.

blower motor wheel

  1. To install, reverse the removal procedure.
