2014 KIA Forte Headlight Wiring Diagram

2014 KIA Forte EX

Hello, I’m looking for the headlight (low beam) wiring diagram for a 2014 Kia Forte EX 2.0l gdi w/auto headlights and w/fog lights. Thanks for your time and great website.

Nick

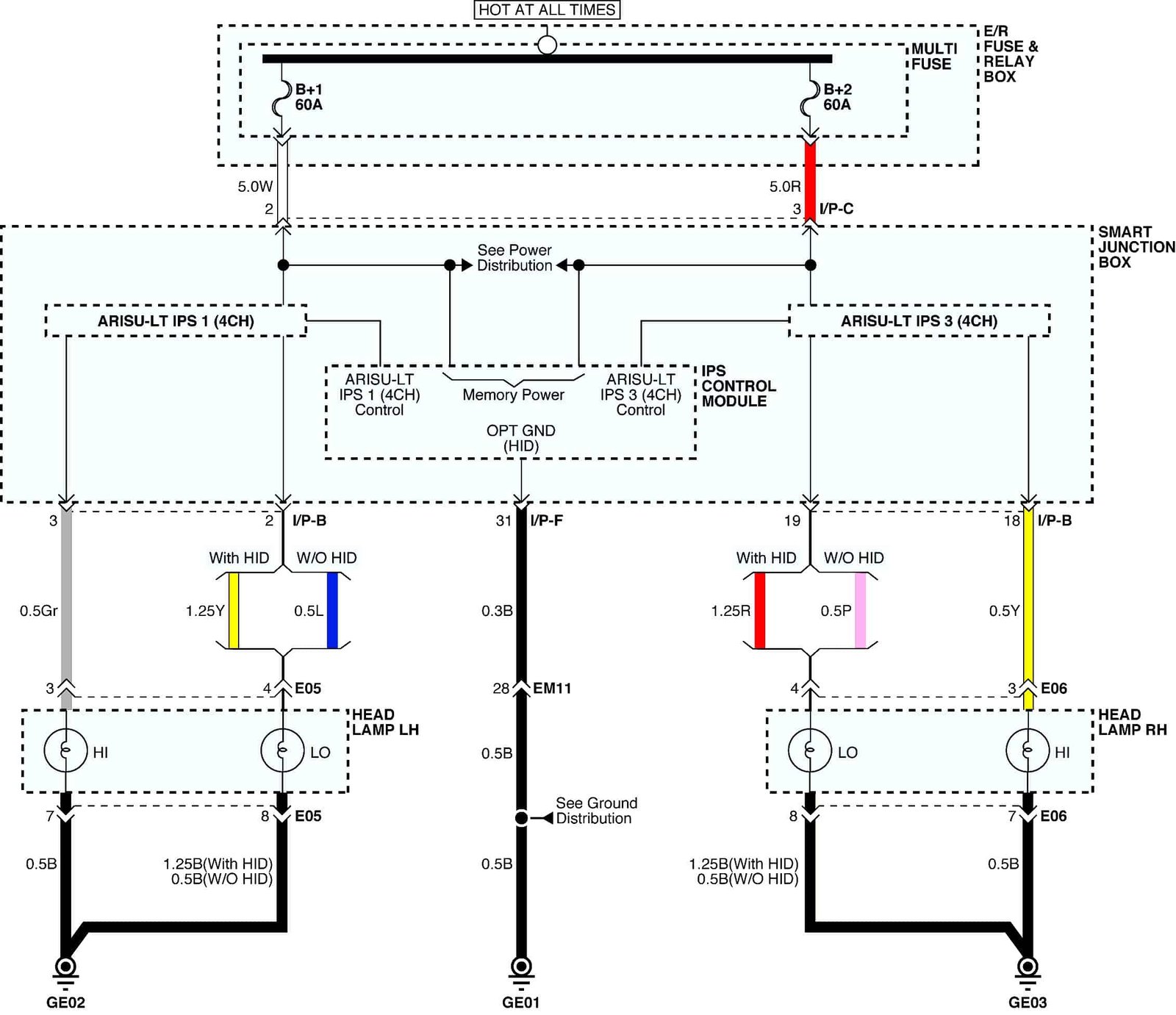

2014 KIA Forte Headlight Module Wiring Diagram

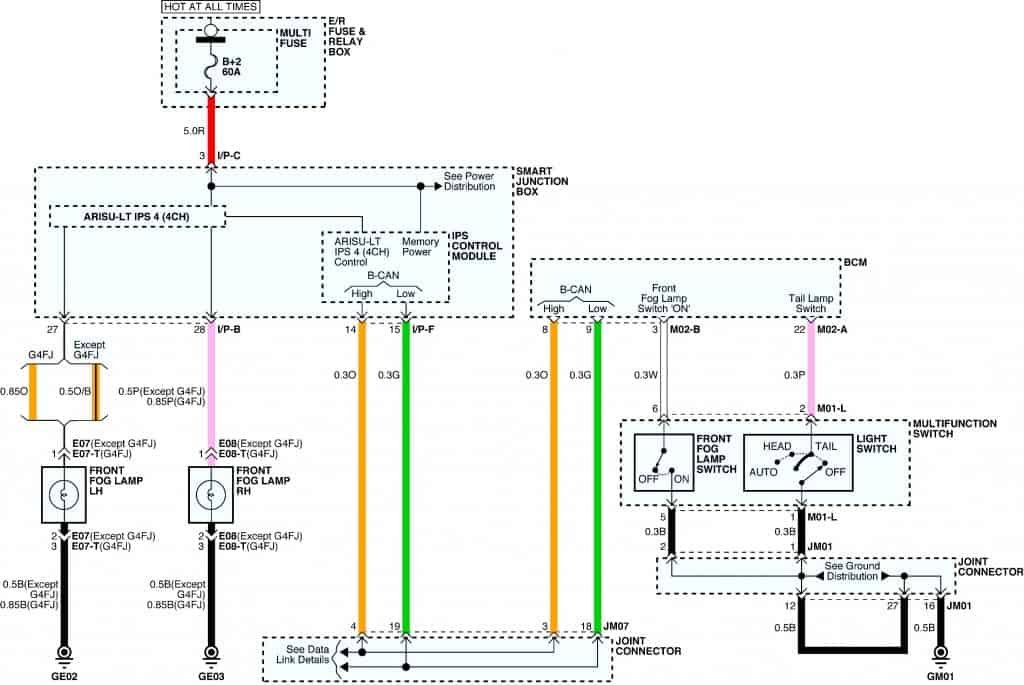

2014 KIA Forte Fog Lights Wiring Diagram

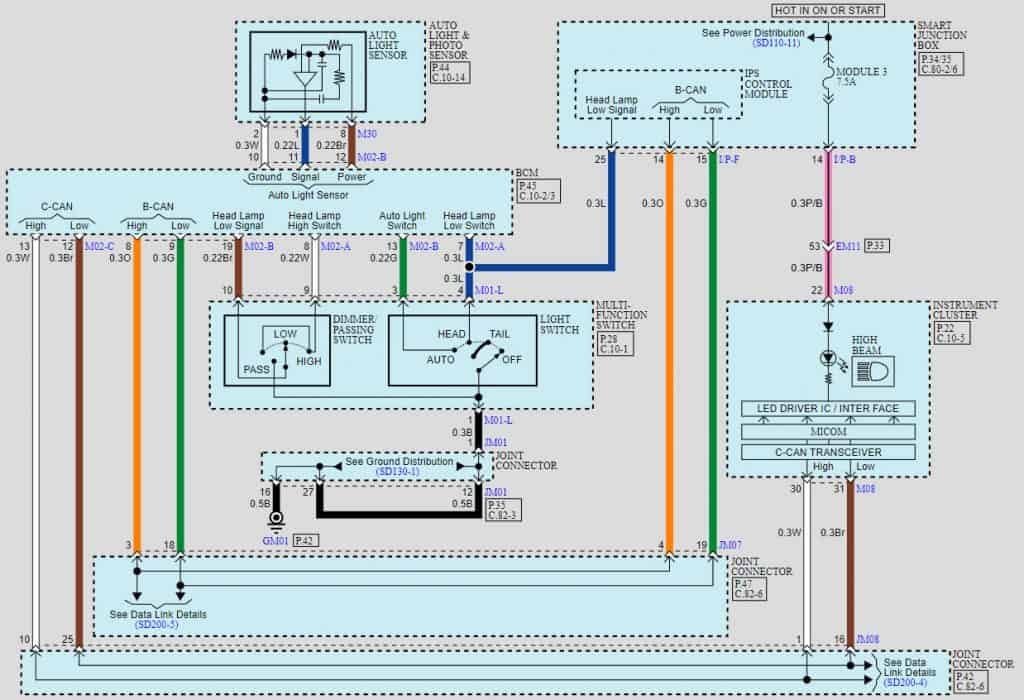

2014 KIA Forte Auto Lights Wiring Diagram
