Alarm System / Remote Starter Wiring Installation Charts

Remote Car Starters are a great addition to any automobile! If you have already purchased your remote car starter, you may want to use the remote starter wiring and installation charts to help make the installation easier on you. If you haven't purchased your remote car starter, we have listed several below that are sure to fit your need from basic to sophisticated.

Air Conditioning Diagnostic Chart Car Won't Start Diagnostic Chart Relays and Switches Testing with a Multi-meter

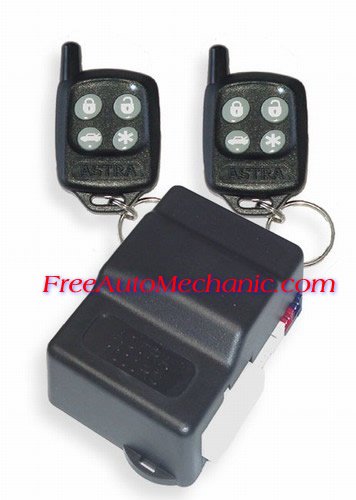

Astra 1000 >> Only $57.99

Two 5-button Code Hopping Long Range Remote With Super Bright Blue LED

Built-In Parking-Light Relay Programmable (+/-)

Pre-wired Super Bright Blue LED, Sensor, and Valet Switch Connectors

Plug-in user programmable Coded Override Switch

Horn Or Ignition 3 (Programmable) (-) Output

Remote Door Locking/Unlocking (-) outputs Programmable Aux. Relay outputs (2nd. Ignition, 2nd. Accessory or 2nd. Starter) Selectable Engine Run Time

Enable or Disable Remote Start in Valet Mode
Over 50 Programmable Features

Galaxy 2000RS SP > $64.99

“ScyNet” Network Data Port Accessory Interface and Wizard Software
Built-In Parking-Light Relay Programmable (+/-)
Pre-wired Super Bright Blue LED, Sensor, and Valet Switch Connectors
Plug-in user programmable Coded Override Switch
Horn Or Ignition 3 (Programmable) (-) Output
Remote Door Locking/Unlocking (-) outputs
Passenger Unlock (-) Output
Two Auxiliary Channels with Selectable Output Types, (Pulsed, Timed or Latched)
Remote Keyless Entry and Accessory Activation Even in Valet Mode
Remote-Controlled Courtesy Lighting
AutoActivation Upon Locking And Unlocking of Auxiliary 2 Output for Comfort Closure (windows)
Smart Remote Trunk Release
Turbo Timer
Over 50 programmable Features

Galaxy 2000RS-2W -1 Remote Starter
•One Carbon Fiber 5-button 2-Way Remote
•One 5-button Long Range Remote W/ Super Bright Blue LED
•Complete remote engine starter module
•Pin Switch
•Wiring harnesses
List Price: $250.00
Our Price: $99.99
You Save $150.01!

Galaxy 2100RS complete 2 way color LCD remote start system
•One Carbon Fiber 5-button True Color 2-Way LCD Remote
•One 5-button Carbon Fiber Remote W/ Super Bright Blue LED
•Complete remote engine starter module
•Pin Switch
•Wiring harnesses
List Price: $320.0-
Our Price: $144.99
You Save $175.01!
